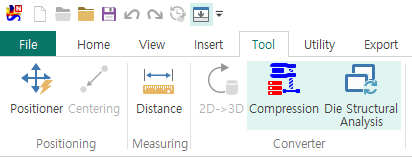

Tool

Positioning

• Positioner
  Opens the Positioner Dialog to adjust the position of the model.

• Centering
  Opens the Centering Dialog to move the center of the model or align it with the Y-axis.

Measurement

• Distance
  Opens the Distance Dialog to measure distances.

Conversion

• 2D to 3D
  Opens the Conversion Dialog to convert 2D analysis results to 3D analysis results.

• Compression
  Opens the Compression Dialog to reduce file size by adjusting the number of steps in the analysis results.

• Die Structural Analysis Opens the Die Structural Analysis Dialog to perform die structural analysis separately after analysis completion.
